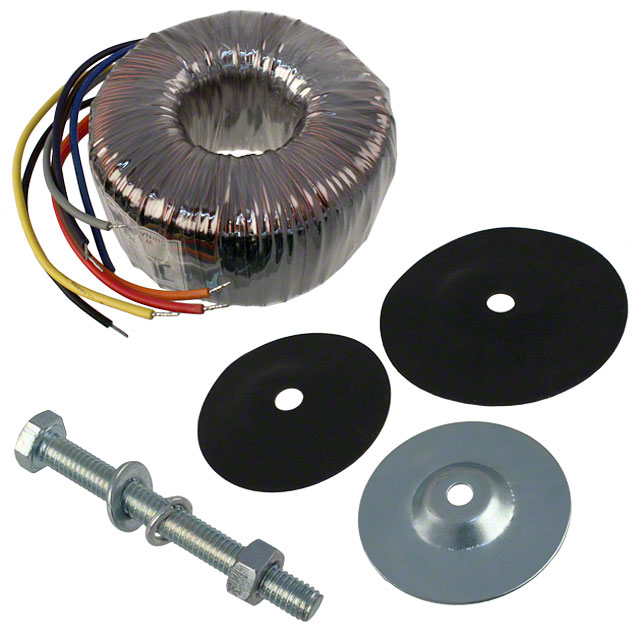

VPT36-2780 Triad Magnetics
Favorite
Compare
Manufacturer:
Triad Magnetics
MFR Product Number:
VPT36-2780
Product Number:
VPT36-2780
MFR Standard Lead Time:
19 Weeks
Package/Case:
Detailed Description:
PWR XFMR TOROIDAL 100VA CHAS MT
Datasheet:
Descnt:
In Stock
284
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Triad Magnetics
Series
Chassis Mount: World Series™
Packaging
Box
Part Status
Active
Type
Toroidal
Voltage - Primary
115V, 230V
Voltage - Secondary (Full Load)
Parallel 18V, Series 36V
Current - Output (Max)
Parallel 5.56A, Series 2.78A
Primary Winding(s)
Dual
Secondary Winding(s)
Dual
Center Tap
No
Power - Max
100VA
Mounting Type
Chassis Mount
Termination Style
Wire Leads
Size / Dimension
87.00mm Dia x 47.00mm W
Height - Seated (Max)
51.0mm
Voltage - Isolation
4000Vrms
Weight
2.2 lbs (997.9 g)
Documents & Media
Product Drawings
VPT Series Side
VPT Series Top
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4065
-
Additional Resources
Other Names
Standard Package
1
