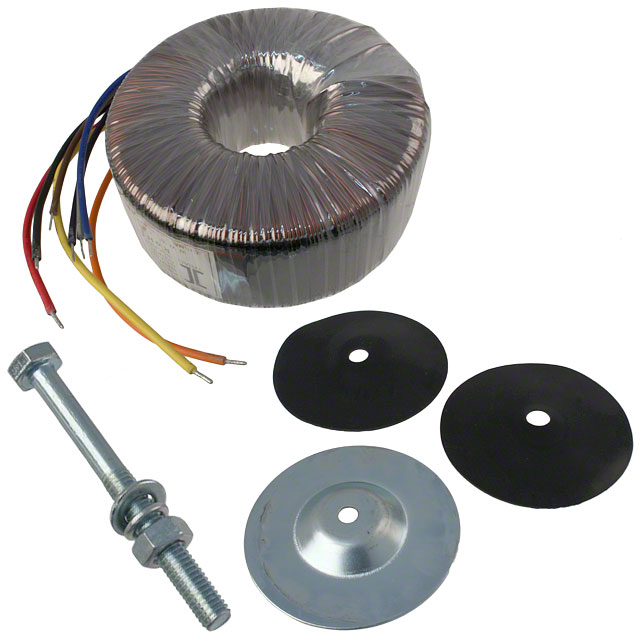

VPT48-3300 Triad Magnetics
Favorite
Compare
Manufacturer:
Triad Magnetics
MFR Product Number:
VPT48-3300
Product Number:
VPT48-3300
MFR Standard Lead Time:
19 Weeks
Package/Case:
Detailed Description:
PWR XFMR TOROIDAL 160VA CHAS MT
Datasheet:
Descnt:
In Stock
1367
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Triad Magnetics
Series
Chassis Mount: World Series™
Packaging
Box
Part Status
Active
Type
Toroidal
Voltage - Primary
115V, 230V
Voltage - Secondary (Full Load)
Parallel 24V, Series 48V
Current - Output (Max)
Parallel 6.66A, Series 3.33A
Primary Winding(s)
Dual
Secondary Winding(s)
Dual
Center Tap
No
Power - Max
160VA
Mounting Type
Chassis Mount
Termination Style
Wire Leads
Size / Dimension
103.00mm Dia x 48.00mm W
Height - Seated (Max)
52.0mm
Voltage - Isolation
4000Vrms
Weight
3.6 lbs (1.6 kg)
Documents & Media
Product Drawings
VPT Series Top
VPT Series Side
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4065
-
Additional Resources
Other Names
Standard Package
1
