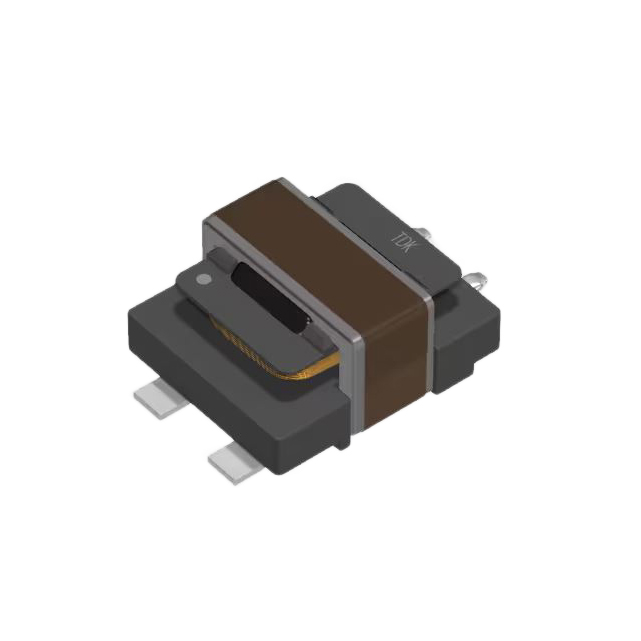

VST16/8EE-200S1C2 TDK Corporation
Favorite
Compare
Manufacturer:
TDK Corporation
MFR Product Number:
VST16/8EE-200S1C2
Product Number:
VST16-8EE-200S1C2
MFR Standard Lead Time:
20 Weeks
Package/Case:
Detailed Description:
TRANSFORMER
Datasheet:
Descnt:
40 A 1:100 Current Sense Transformer 0.7mOhm Primary, 2.25Ohm Secondary 10 mH Surface Mount
In Stock
594
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
TDK Corporation
Series
VST
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Frequency Range
-
Type
Invasive
Current Rating (Amps)
40 A
Inductance
10 mH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1:100
Current Ratio
100:1
DC Resistance (DCR)
0.7mOhm Primary, 2.25Ohm Secondary
Ratings
-
Mounting Type
Surface Mount
Size / Dimension
0.776" L x 0.689" W (19.70mm x 17.50mm)
Height - Seated (Max)
0.425" (10.80mm)
Termination Style
Gull Wing
Weight
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8504.31.2000
Additional Resources
Other Names
Standard Package
150
