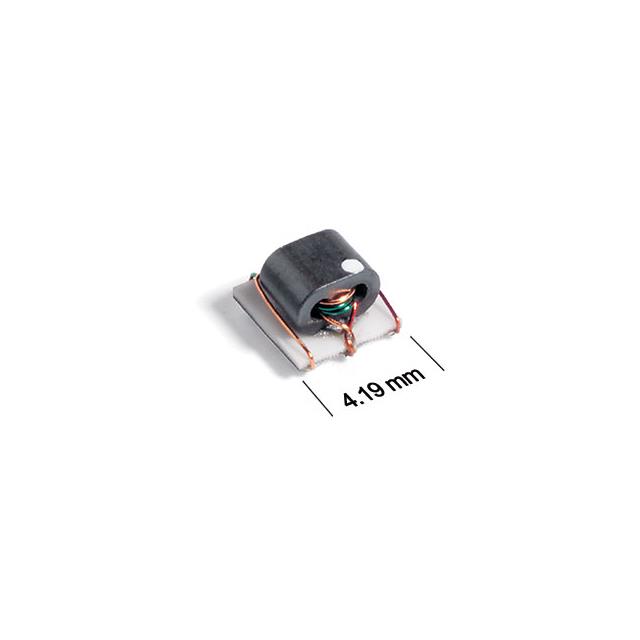

WBC8-1LC Coilcraft
Favorite
Compare
Manufacturer:
Coilcraft
MFR Product Number:
WBC8-1LC
Product Number:
WBC8-1LC
MFR Standard Lead Time:
Package/Case:
Detailed Description:
PULSE XFMR 1:8 22UH 176UH
Datasheet:
Descnt:
Pulse Transformer 1:8 Surface Mount
In Stock
347
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Coilcraft
Series
WBC
Packaging
Tape & Reel (TR)
Part Status
Active
Transformer Type
-
Turns Ratio - Primary:Secondary
1:8
Mounting Type
Surface Mount
Size / Dimension
0.175" L x 0.165" W (4.45mm x 4.19mm)
Height - Seated (Max)
0.120" (3.04mm)
Operating Temperature
-40°C ~ 85°C
Weight
-
-
Documents & Media
Environmental & Export Classifications
ECCN
EAR99
HTSUS
8504.31.4035
Additional Resources
Other Names
2457-WBC8-1LC
Standard Package
1
