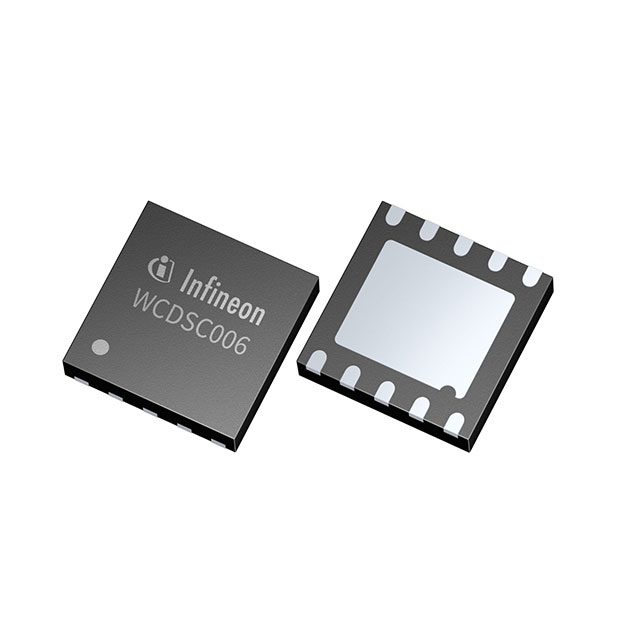

WCDSC006XUMA1 Infineon Technologies
Favorite
Compare
Manufacturer:
Infineon Technologies
MFR Product Number:
WCDSC006XUMA1
Product Number:
WCDSC006XUMA1
MFR Standard Lead Time:
16 Weeks
Package/Case:
10-WDFN Exposed Pad
Detailed Description:
IC HALF BRIDGE DRIVER 2A 10WSON
Datasheet:
Descnt:
Half Bridge Driver General Purpose Power MOSFET PG-WSON-10
In Stock
5112
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Infineon Technologies
Series
EiceDriver™
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Output Configuration
Half Bridge
Applications
General Purpose
Interface
Logic, PWM
Load Type
Inductive, Capacitive, Resistive
Technology
Power MOSFET
Rds On (Typ)
800mOhm LS (Max), 2Ohm HS (Max)
Current - Output / Channel
2A
Current - Peak Output
2A
Voltage - Supply
4.75V ~ 5.5V
Voltage - Load
4.75V ~ 5.5V
Operating Temperature
-40°C ~ 125°C (TJ)
Features
-
Fault Protection
Current Limiting, Shoot-Through, UVLO
Mounting Type
Surface Mount
Package / Case
10-WDFN Exposed Pad
Supplier Device Package
PG-WSON-10
Base Product Number
WCDSC006
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2 (1 Year)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
6,000
