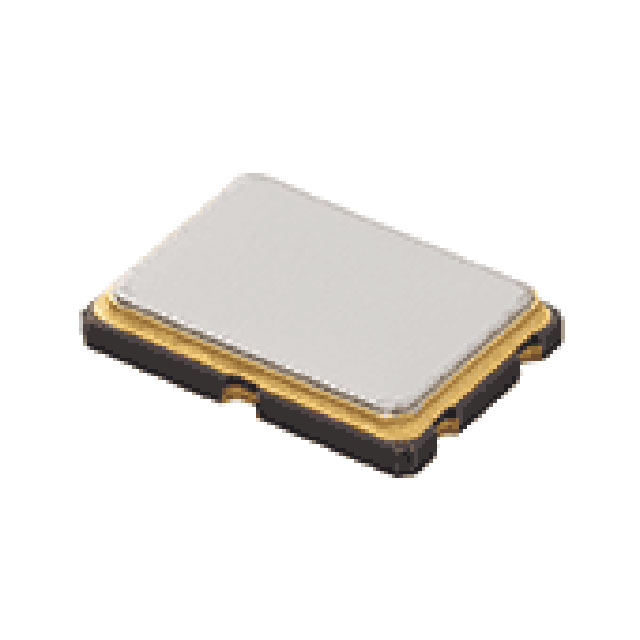

XNCLH24M576CHJA8P0 Murata Electronics
Favorite
Compare
Manufacturer:
Murata Electronics
MFR Product Number:
XNCLH24M576CHJA8P0
Product Number:
XNCLH24M576CHJA8P0
MFR Standard Lead Time:
Package/Case:
8-SMD, No Lead
Detailed Description:
CRYSTAL OSCILLATOR TCXO 24.576MH
Datasheet:
Descnt:
24.576 MHz TCXO CMOS Oscillator 3.3V 8-SMD, No Lead
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Murata Electronics
Series
XNCLH
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Obsolete
Base Resonator
Crystal
Type
TCXO
Frequency
24.576 MHz
Function
-
Output
CMOS
Voltage - Supply
3.3V
Frequency Stability
±280ppb
Absolute Pull Range (APR)
-
Operating Temperature
-40°C ~ 85°C
Spread Spectrum Bandwidth
-
Current - Supply (Max)
3.5mA
Ratings
-
Mounting Type
Surface Mount
Package / Case
8-SMD, No Lead
Size / Dimension
0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max)
0.059" (1.50mm)
Current - Supply (Disable) (Max)
-
-
Documents & Media
Datasheets
Video File
The Role of Oscillation Circuit Components
The Measurement Process for the Oscillation Margin
The Measurement Process for the Drive Level
The Oscillation Characteristics & Circuit Constants
The Oscillation Frequency Measurement
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
Standard Package
2,000
