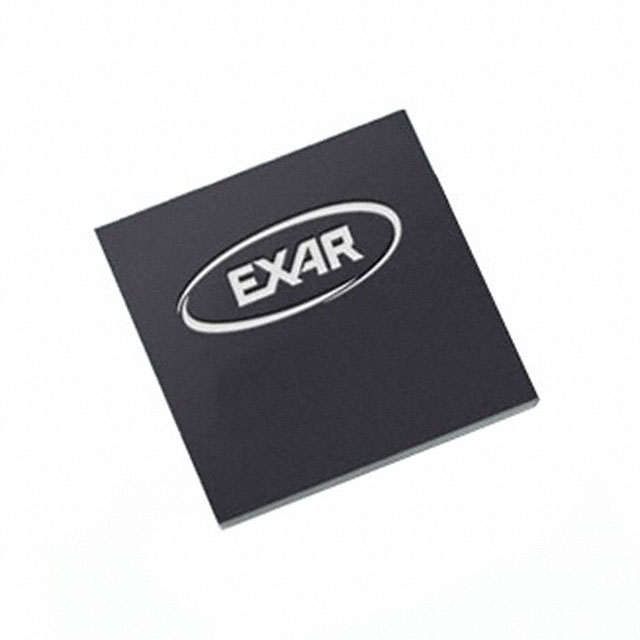

XR76205EL-F MaxLinear, Inc.
Favorite
Compare
Manufacturer:
MaxLinear, Inc.
MFR Product Number:
XR76205EL-F
Product Number:
XR76205EL-F
MFR Standard Lead Time:
20 Weeks
Package/Case:
30-PowerVFQFN
Detailed Description:
IC REG BUCK ADJ 5A 30QFN
Datasheet:
Descnt:
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 5A 30-PowerVFQFN
In Stock
1373
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
MaxLinear, Inc.
Series
Power Blox™
Packaging
Tray
Part Status
Active
Function
Step-Down
Output Configuration
Positive
Topology
Buck
Output Type
Adjustable
Number of Outputs
1
Voltage - Input (Min)
5V
Voltage - Input (Max)
40V
Voltage - Output (Min/Fixed)
0.6V
Voltage - Output (Max)
40V
Current - Output
5A
Frequency - Switching
100kHz ~ 800kHz
Synchronous Rectifier
Yes
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
30-PowerVFQFN
Supplier Device Package
30-QFN (5x5)
Base Product Number
XR76205
-
Documents & Media
Datasheets
XR76203,5,8
XR76203,5,8 Product Brief
HTML Datasheet
XR76203,5,8 Product Brief
XR76203,5,8
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2 (1 Year)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
1016-2077
Standard Package
490
