Manufacturer:
Coilcraft
MFR Product Number:
ZA9709-AED
Product Number:
ZA9709-AED
MFR Standard Lead Time:
Package/Case:
Detailed Description:

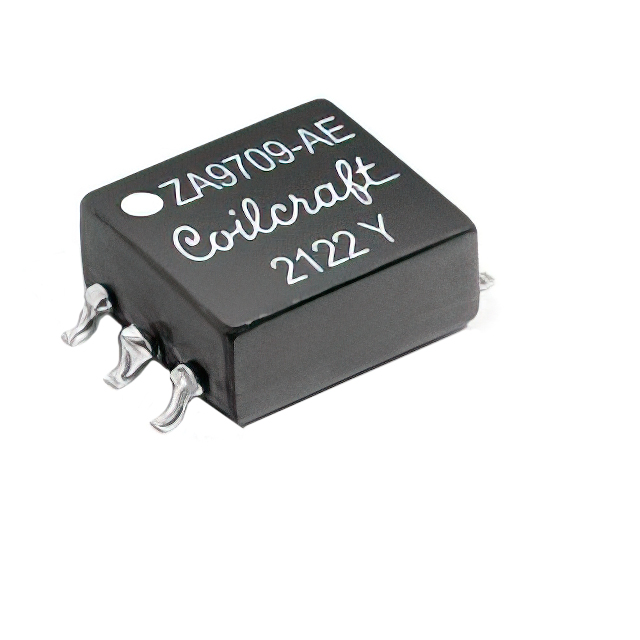

XFMR FWD P-P DC/DC CONV 145UH SM
Datasheet:
Descnt:
Forward, Push-Pull Converters For For DC/DC Converters SMPS Transformer 2500Vrms Isolation Surface Mount
In Stock
2274
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Coilcraft
Series
ZA9709
Packaging
Strip
Part Status
Active
Type
For DC/DC Converters
Applications
Forward, Push-Pull Converters
Intended Chipset
SN6505B
Chipset Manufacturer
Texas Instruments
Voltage - Primary
3.3V
Voltage - Auxiliary
-
Voltage - Isolation
2500Vrms
Inductance Frequency
145µH 100kHz
Frequency
-
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Size / Dimension
-
Height - Seated (Max)
0.171" (4.34mm)
Footprint
0.512" L x 0.347" W (13.00mm x 8.82mm)
Style
-
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
Additional Resources
Other Names
2457-ZA9709-AED
Standard Package
1
