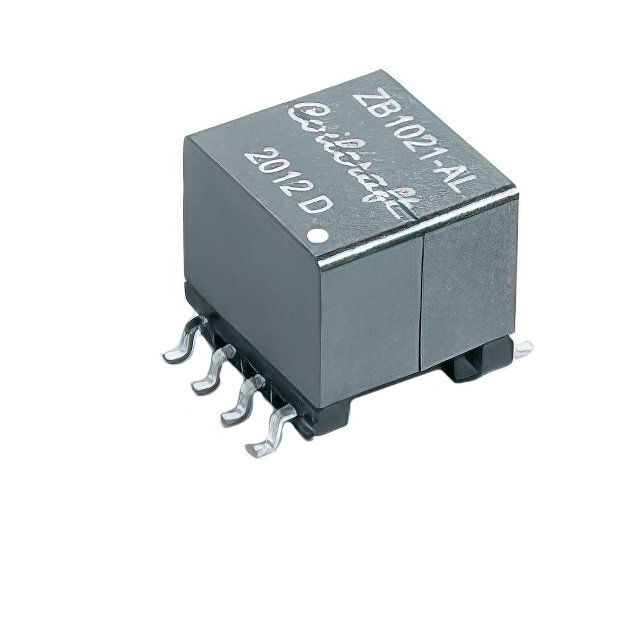

ZB1021-ALD Coilcraft
Favorite
Compare
Manufacturer:
Coilcraft
MFR Product Number:
ZB1021-ALD
Product Number:
ZB1021-ALD
MFR Standard Lead Time:
Package/Case:
Detailed Description:
XFMR 22UH SMD
Datasheet:
Descnt:
For SMPS Transformer 1500Vrms Isolation 150kHz Surface Mount
In Stock
498
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Coilcraft
Series
-
Packaging
Strip
Part Status
Active
Type
-
Applications
-
Intended Chipset
-
Chipset Manufacturer
-
Voltage - Primary
17 ~ 36V
Voltage - Auxiliary
-
Voltage - Isolation
1500Vrms
Inductance Frequency
22µH 150kHz
Frequency
150kHz
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Size / Dimension
0.500" L x 0.413" W (12.70mm x 10.50mm)
Height - Seated (Max)
0.433" (11.00mm)
Footprint
0.600" L x 0.500" W (15.24mm x 12.70mm)
Style
-
-
Documents & Media
Environmental & Export Classifications
REACH Status
Vendor Undefined
-
Additional Resources
Other Names
2457-ZB1021-ALD
Standard Package
1
