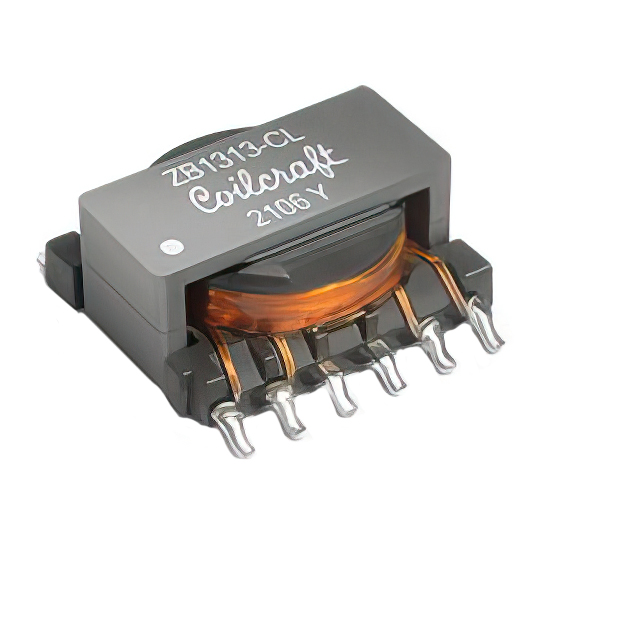

ZB1313-CLD Coilcraft
Favorite
Compare
Manufacturer:
Coilcraft
MFR Product Number:
ZB1313-CLD
Product Number:
ZB1313-CLD
MFR Standard Lead Time:
Package/Case:
Detailed Description:
XFMR FLYBCK DC/DC CONV 10.5UH SM
Datasheet:
Descnt:
Flyback Converters For For DC/DC Converters SMPS Transformer 1500Vrms Isolation 163kHz Surface Mount
In Stock
1174
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Coilcraft
Series
ZB1313-CL
Packaging
Strip
Part Status
Active
Type
For DC/DC Converters
Applications
Flyback Converters
Intended Chipset
MAX17690
Chipset Manufacturer
Maxim Integrated
Voltage - Primary
18 ~ 38V
Voltage - Auxiliary
-
Voltage - Isolation
1500Vrms
Inductance Frequency
10.5µH 150kHz
Frequency
163kHz
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Size / Dimension
-
Height - Seated (Max)
0.291" (7.40mm)
Footprint
0.661" L x 0.642" W (16.80mm x 16.30mm)
Style
Wirewound
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
Additional Resources
Other Names
2457-ZB1313-CLD
Standard Package
1
