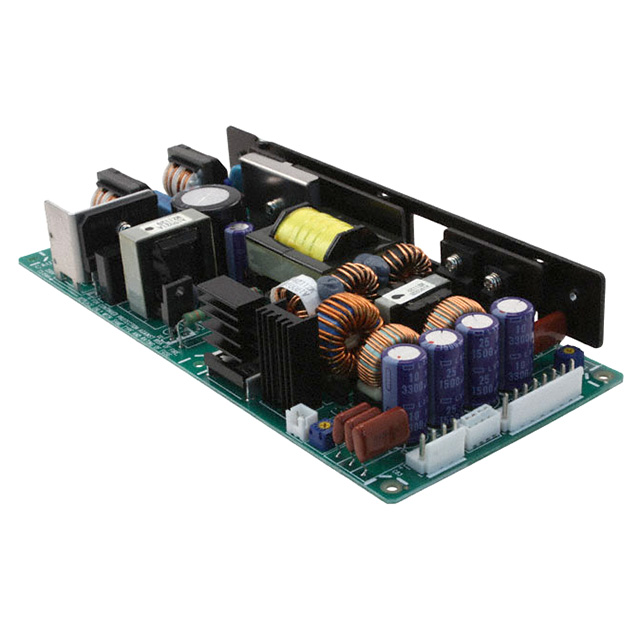

ZWQ80-5223/L TDK-Lambda
Favorite
Compare
Manufacturer:
TDK-Lambda
MFR Product Number:
ZWQ80-5223/L
Product Number:
ZWQ80-5223-L
MFR Standard Lead Time:
32 Weeks
Package/Case:
Detailed Description:
AC/DC CNVRTR 5V +/-12V 3.3V 80W
Datasheet:
Descnt:
Open Frame AC DC Converters 4 Output 5V 12V -12V 3.3V 85 ~ 265 VAC Input
In Stock
2
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
TDK-Lambda
Series
ZWQ (80W)
Packaging
Bulk
Part Status
Active
Type
Open Frame
Number of Outputs
4
Voltage - Input
85 ~ 265 VAC
Voltage - Output 1
5V
Voltage - Output 2
12V
Voltage - Output 3
-12V
Voltage - Output 4
3.3V
Voltage - Output 6
-
Current - Output 1
8 A
Current - Output 2
2 A
Current - Output 3
2 A
Current - Output 4
7 A
Power (Watts)
80W
Applications
ITE (Commercial)
Voltage - Isolation
3 kV
Efficiency
72%
Operating Temperature
-10°C ~ 60°C (With Derating)
Features
Adjustable Output, PFC, Universal Input
Mounting Type
Chassis Mount
Size / Dimension
8.27" L x 3.68" W x 1.38" H (210.0mm x 93.5mm x 35.0mm)
Approval Agency
CE
Minimum Load Required
Yes
Base Product Number
ZWQ80
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.40.9520
California Prop 65
<img class="warning_image" src="//media.digikey.com/Icons/warning%20sign.jpg"/> Warning Information
Additional Resources
Other Names
Standard Package
1
