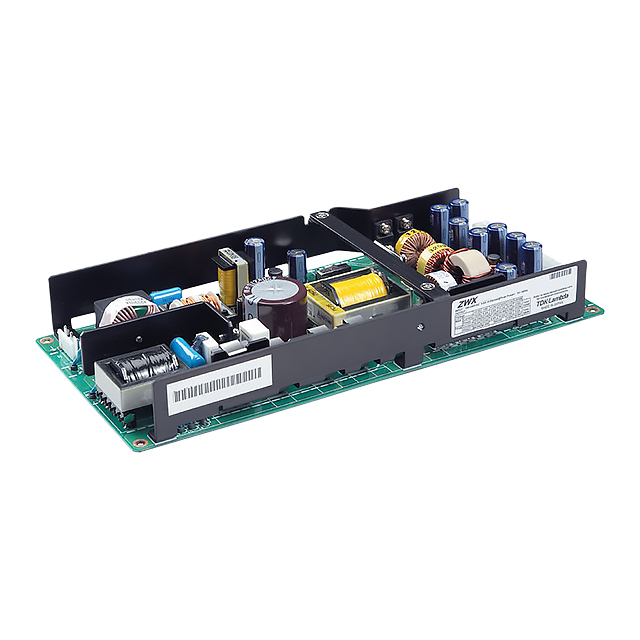

ZWX240 TDK-Lambda
Favorite
Compare
Manufacturer:
TDK-Lambda
MFR Product Number:
ZWX240
Product Number:
ZWX240
MFR Standard Lead Time:
Package/Case:
Detailed Description:
AC/DC CNVRTR 3.3V 5V +/-12V 120W
Datasheet:
Descnt:
Open Frame AC DC Converters 4 Output 3.3V 5V 12V -12V 85 ~ 265 VAC Input
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
TDK-Lambda
Series
ZWX (240W)
Packaging
Bulk
Part Status
Obsolete
Type
Open Frame
Number of Outputs
4
Voltage - Input
85 ~ 265 VAC
Voltage - Output 1
3.3V
Voltage - Output 2
5V
Voltage - Output 3
12V
Voltage - Output 4
-12V
Voltage - Output 6
-
Current - Output 1
7 A
Current - Output 2
6 A
Current - Output 3
8 A
Current - Output 4
200 mA
Power (Watts)
120W (204W Forced Air)
Applications
ITE (Commercial)
Voltage - Isolation
3 kV
Efficiency
81%
Operating Temperature
-10°C ~ 70°C (With Derating)
Features
PFC, Remote On/Off, Remote Sense, Universal Input
Mounting Type
Chassis Mount
Size / Dimension
8.86" L x 4.17" W x 1.38" H (225.0mm x 106.0mm x 35.0mm)
Approval Agency
CE
Minimum Load Required
No
Documents & Media
Datasheets
マルチ出力 180W, 240W, 300W
ZWX Series
-
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8504.40.9530
California Prop 65
