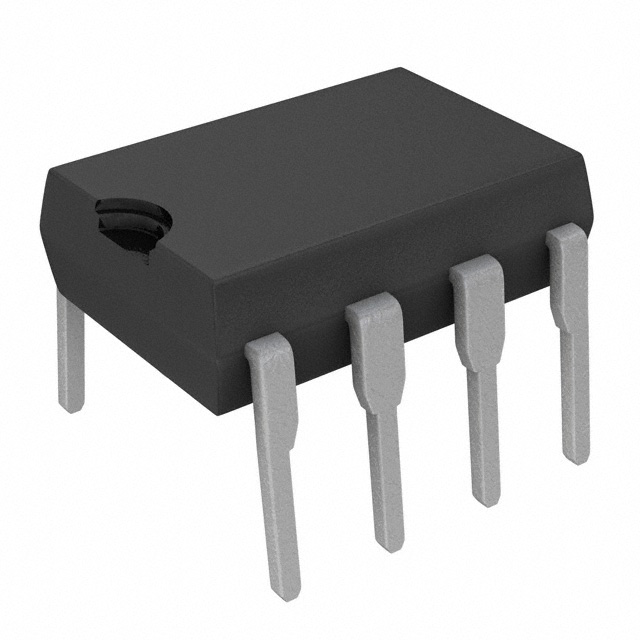

ZXBM5409Q-N-U Diodes Incorporated
Favorite
Compare
Manufacturer:
Diodes Incorporated
MFR Product Number:
ZXBM5409Q-N-U
Product Number:
ZXBM5409Q-N-U
MFR Standard Lead Time:
8 Weeks
Package/Case:
8-DIP (0.300\, 7.62mm)
Detailed Description:
MOTOR DRIVER SERVO CTRL PDIP-8
Datasheet:
Descnt:
Motor Driver Power MOSFET 8-PDIP
In Stock
3168
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Diodes Incorporated
Series
-
Packaging
Tube
Part Status
Active
Motor Type - Stepper
-
Motor Type - AC, DC
Brushed DC, DC Servo
Function
Driver - Fully Integrated, Control and Power Stage
Output Configuration
Half Bridge (2)
Interface
-
Technology
Power MOSFET
Step Resolution
-
Applications
-
Current - Output
800mA
Voltage - Supply
8V ~ 18V
Voltage - Load
-
Operating Temperature
-40°C ~ 125°C (TA)
Grade
Automotive
Qualification
AEC-Q100
Mounting Type
Through Hole
Package / Case
8-DIP (0.300", 7.62mm)
Supplier Device Package
8-PDIP
Base Product Number
ZXBM5409
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
ZXBM5409Q-N-UDI
Standard Package
3,600
