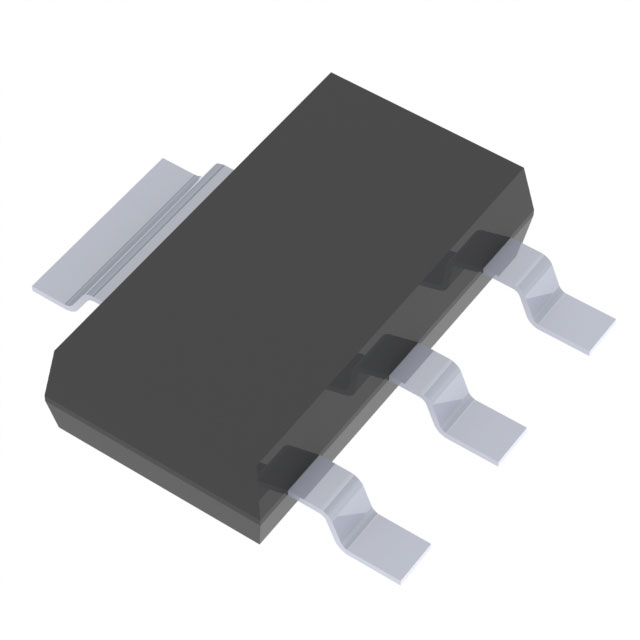

ZXMS6001N3QTA Diodes Incorporated
Favorite
Compare
Manufacturer:
Diodes Incorporated
MFR Product Number:
ZXMS6001N3QTA
Product Number:
ZXMS6001N3QTA
MFR Standard Lead Time:
24 Weeks
Package/Case:
TO-261-4, TO-261AA
Detailed Description:
IC PWR DRIVER N-CHAN 1:1 SOT223
Datasheet:
Descnt:
Power Switch/Driver 1:1 N-Channel 1.1A SOT-223
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Diodes Incorporated
Series
INTELLIFET®
Packaging
Tape & Reel (TR)
Part Status
Active
Switch Type
General Purpose
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
Low Side
Output Type
N-Channel
Interface
On/Off
Voltage - Load
60V (Max)
Voltage - Supply (Vcc/Vdd)
Not Required
Current - Output (Max)
1.1A
Rds On (Typ)
520mOhm
Input Type
Non-Inverting
Features
Auto Restart
Fault Protection
Current Limiting (Fixed), Over Temperature, Over Voltage, Short Circuit
Operating Temperature
-40°C ~ 125°C (TA)
Grade
Automotive
Qualification
AEC-Q101
Mounting Type
Surface Mount
Supplier Device Package
SOT-223
Package / Case
TO-261-4, TO-261AA
Base Product Number
ZXMS6001
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
ZXMS6001N3QTADI
Standard Package
1,000
