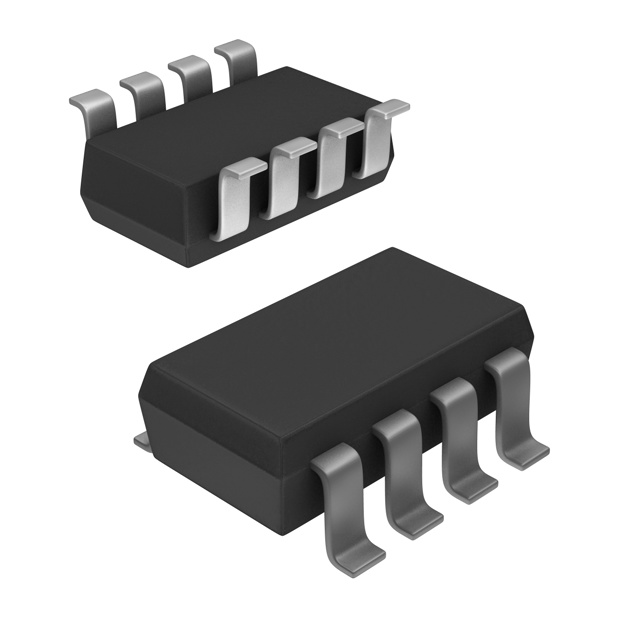

ZXMS6005DT8TA Diodes Incorporated
Favorite
Compare
Manufacturer:
Diodes Incorporated
MFR Product Number:
ZXMS6005DT8TA
Product Number:
ZXMS6005DT8TA
MFR Standard Lead Time:
8 Weeks
Package/Case:
SOT-223-8
Detailed Description:
IC PWR DRIVER N-CHANNEL 1:1 SM8
Datasheet:
Descnt:
Power Switch/Driver 1:1 N-Channel 1.8A SM8
In Stock
988
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Diodes Incorporated
Series
INTELLIFET®
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Type
General Purpose
Number of Outputs
2
Ratio - Input:Output
1:1
Output Configuration
Low Side
Output Type
N-Channel
Interface
On/Off
Voltage - Load
60V (Max)
Voltage - Supply (Vcc/Vdd)
3.3V, 5V
Current - Output (Max)
1.8A
Rds On (Typ)
150mOhm
Input Type
Non-Inverting
Features
Auto Restart
Fault Protection
Current Limiting (Fixed), Over Temperature, Over Voltage
Operating Temperature
-40°C ~ 125°C (TA)
Grade
Automotive
Qualification
AEC-Q101
Mounting Type
Surface Mount
Supplier Device Package
SM8
Package / Case
SOT-223-8
Base Product Number
ZXMS6005
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8541.29.0095
-
Additional Resources
Other Names
Standard Package
1,000
